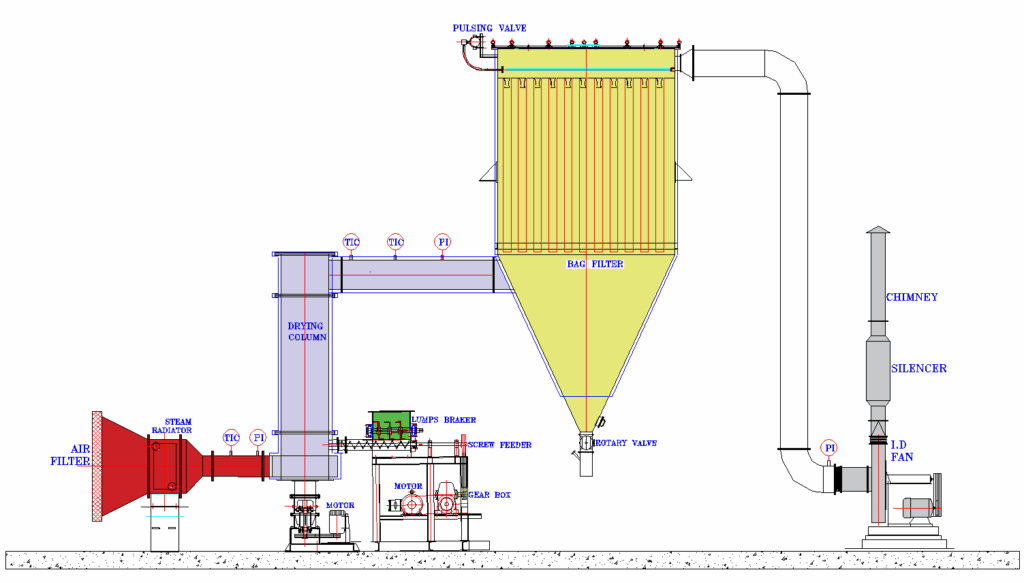

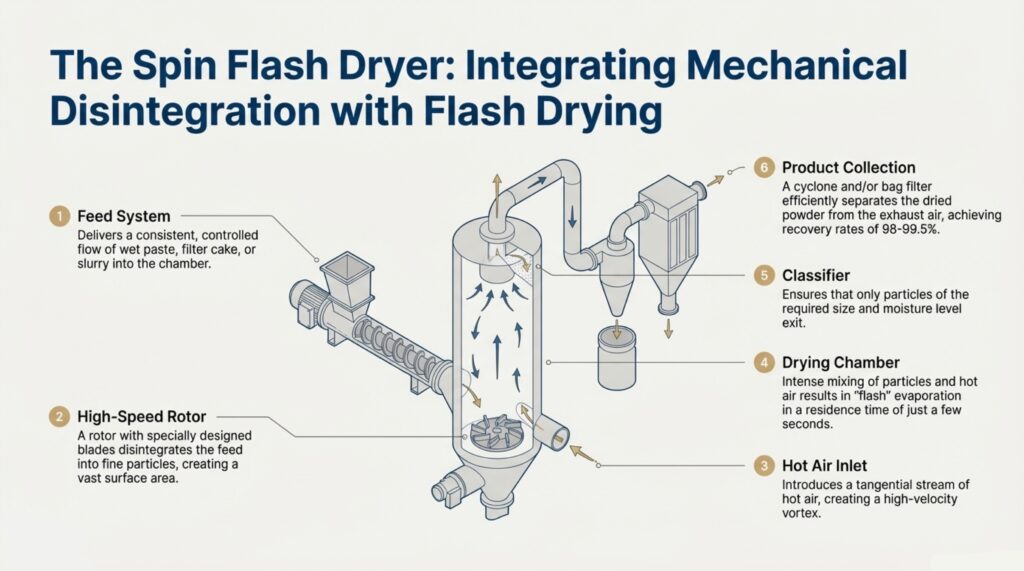

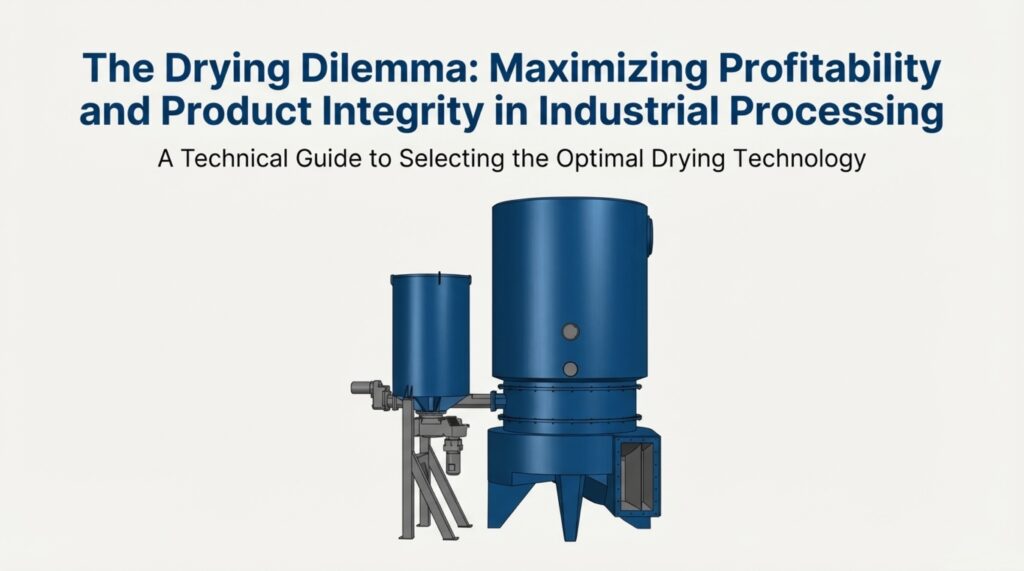

Spin Flash Drying system

At Rahul Engineers, we manufacture high-quality Spin Dryers designed for efficient separation of liquids from solids using centrifugal force. Spin Dryers are widely used in chemical, pharmaceutical, textile, and food industries for quick drying of materials while maintaining product quality. Our Spin Dryers are built with robust construction, low maintenance features, and can be fabricated in Stainless Steel, Inconel, or other specialized materials depending on process needs. With high-speed rotation, they ensure uniform drying, reduced drying time, and energy efficiency.

OPERATING INSTRUCTIONS

Fill up the feeder with wet cake. Feeder should never be
overload.
Set the hot air temperature to SFD as per product suitability. The temperature setting are subject to change depending on site conditions.
Start the blower motor with damper in fully closed condition.
Start the agitator cum scrapper motor.
Start HAG. Let the inlet temperature to SF0 and outlet temperature from SFD rise point.
Feeder motor will start as soon as the outlet temperature of
SFD reached the set point.
Start the Rotary air lock valves & Switch on the sequential timer of Bag filter. When the system gets stabilized, dry powder will be continuously discharged.

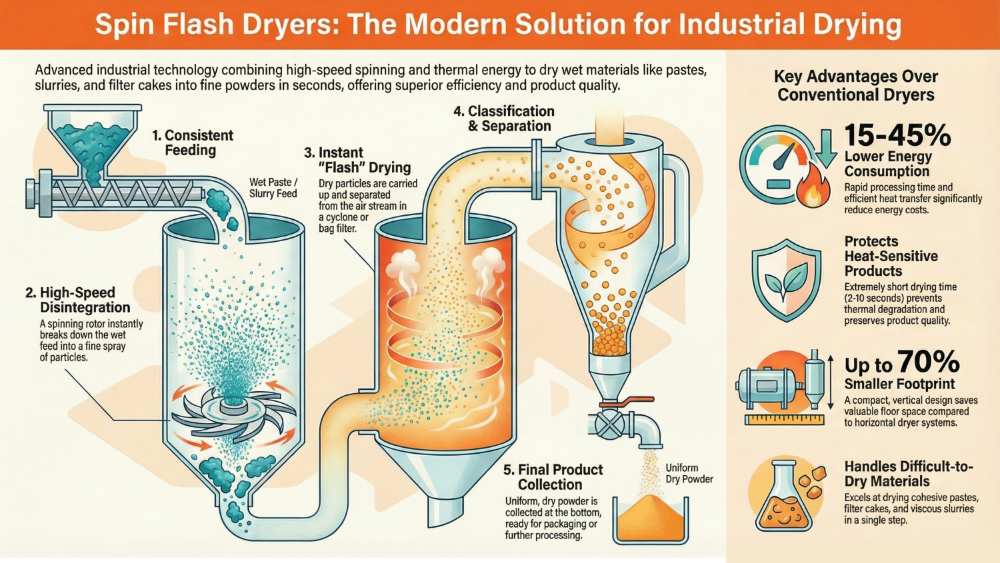

SALIENT FEATURES

An extremely energy efficient continuous drying system, the efficiency being in the region of 70.90 per cent.
Dust-free operation, because it operates under negative pressure
Dries wet cake / pulverizes large particles / classifies particle size.

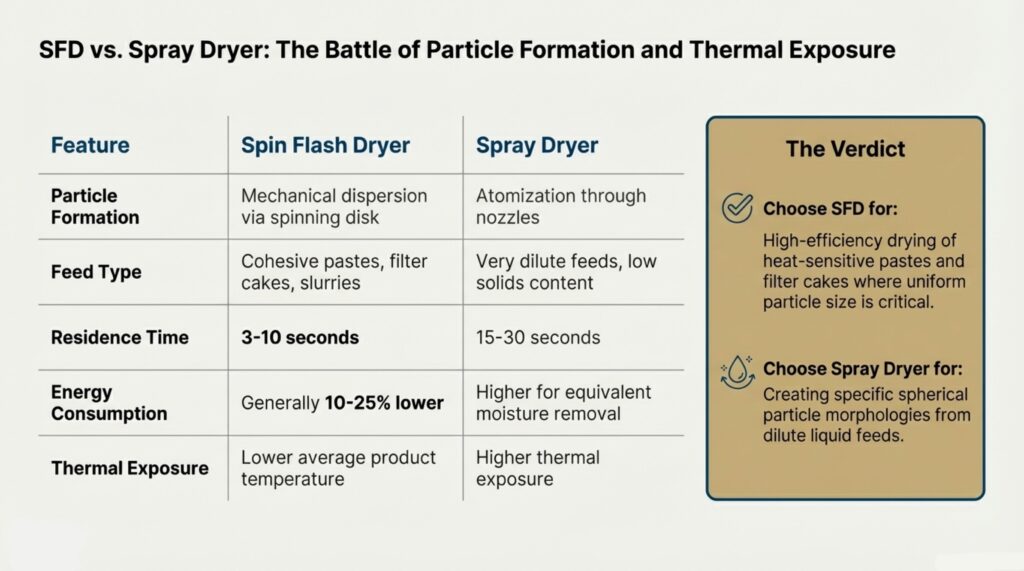

Combines the advantages of Flash Drying system and Spray
Drying system as far as dispersion of dry product is
concerned.
Occupies lesser space compared to Spray Dryer or Pneumatic Flash Dryer.
Very wide range of applications as compared to other types of direct contact dryers.
